Hydraulic Top Link

Related Products

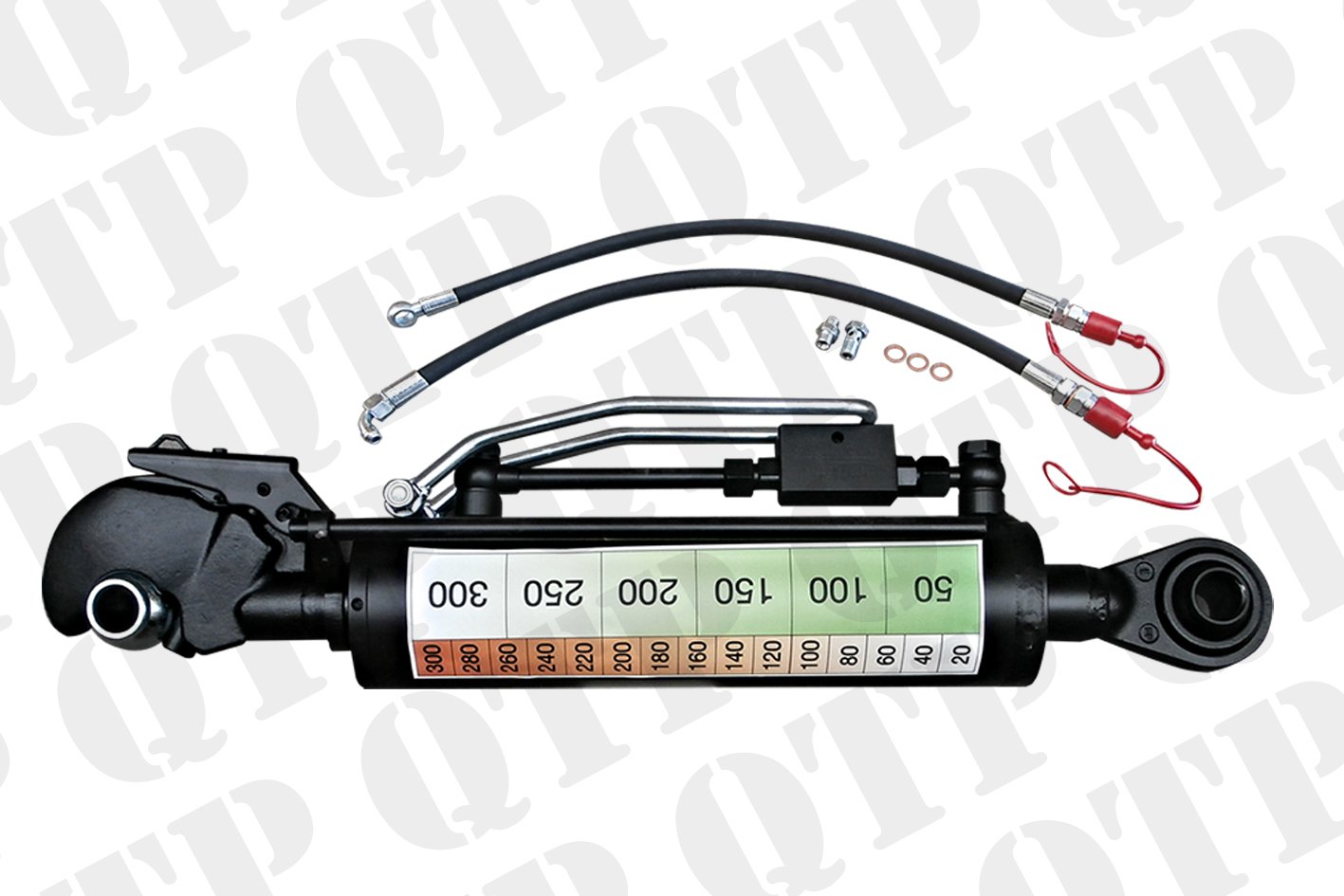

• Hydraulic Top Link Cat 2/2

  Min Length 585mm Max Length 859mm Ram Stroke 274mm Cylinder ID 63mm Piston 35mm c/o Valve ** Knuckles 53467 53468 53569

  Code: 53464

  Loading...
  Add to Favourites
• Handle Hydraulic Top Link

  Handle Hydraulic Top Link Short 10mm / 275mm

  Code: 53470

  Loading...
  Add to Favourites
• Hydraulic Top Link Cat 3

  Ball Knuckle Min Length 580mm Max Length 843mm Ram Stroke 263mm Cylinder ID 90mm Piston 45mm c/o Valve With Handle ** Knuckles 53467 53468 53569 **

  Code: 53452

  Loading...
  Add to Favourites
• Hydraulic Top Link

  Cat 2 Hook Knuckle Min Length 580mm Max Length 825mm Ram Stroke 245mm Cylinder ID 80mm Piston 40mm c/o Valve With Handle ** Knuckles 53467 53468 53469 **

  Code: 53453

  Loading...
  Add to Favourites
• Hydraulic Top Link Cat 3

  Hook Knuckle Min Length 505mm Max Length 646mm Ram Stroke 141mm Cylinder ID 90mm Piston 45mm c/o Valve With Handle ** Knuckles 53467 53468 53569 **

  Code: 53455

  Loading...
  Add to Favourites
• Hydraulic Top Link Cat 3

  Hook Knuckle Min Length 590mm Max Length 816mm Ram Stroke 226mm Cylinder ID 90mm Piston 45mm c/o Valve With Handle ** Knuckles 53467 53468 53569 **

  Code: 53456

  Loading...
  Add to Favourites
• Hydraulic Top Link

  Hook Knuckle Min Length 620mm Max Length 835mm Ram Stroke 215mm Cylinder ID 105mm Piston 45mm c/o Valve With Handle ** Knuckles 53467 53468 53569 **

  Code: 53457

  Loading...
  Add to Favourites
• Hydraulic Top Link

  Hydraulic Top Link Ball Ball Cat 1 Cat 1 Min Length 470mm Max Length 680mm Ram Stroke 210mm Cylinder ID 50mm Piston 30mm Without Handle - with Anti Creep Valve

  Code: 53458

  Loading...
  Add to Favourites
• Hydraulic Top Link

  Hydraulic Top Link Ball Ball Cat 1 Cat 1 Min Length 540mm Max Length 820mm Ram Stroke 280mm Cylinder ID 50mm Piston 30mm Without Handle - with Anti Creep Valve

  Code: 53459

  Loading...
  Add to Favourites
• Hydraulic Top Link

  Hydraulic Top Link Ball Ball Cat 2 Cat 2 Min Length 430mm Max Length 590mm Ram Stroke 160mm Cylinder ID 50mm Piston 30mm Without Handle - with Anti Creep Valve

  Code: 53460

  Loading...
  Add to Favourites
• Hydraulic Top Link

  Hydraulic Top Link Ball Ball Cat 2 Cat 2 Min Length 570mm Max Length 866mm Ram Stroke 296mm Cylinder ID 63mm Piston 35mm Without Handle - with Anti Creep Valve

  Code: 53462

  Loading...
  Add to Favourites
• Hydraulic Top Link

  Hydraulic Top Link Ball Ball Cat 2 Cat 2 Min Length 620mm Max Length 931mm Ram Stroke 311mm Cylinder ID 63mm Piston 35mm No Valve Without Handle

  Code: 53463

  Loading...
  Add to Favourites
• Hydraulic Top Link

  Hydraulic Top Link Ball Ball Cat 2 Cat 2 Length 550mm Max Length775mm Ram Stroke 225mm

  Code: 54865
